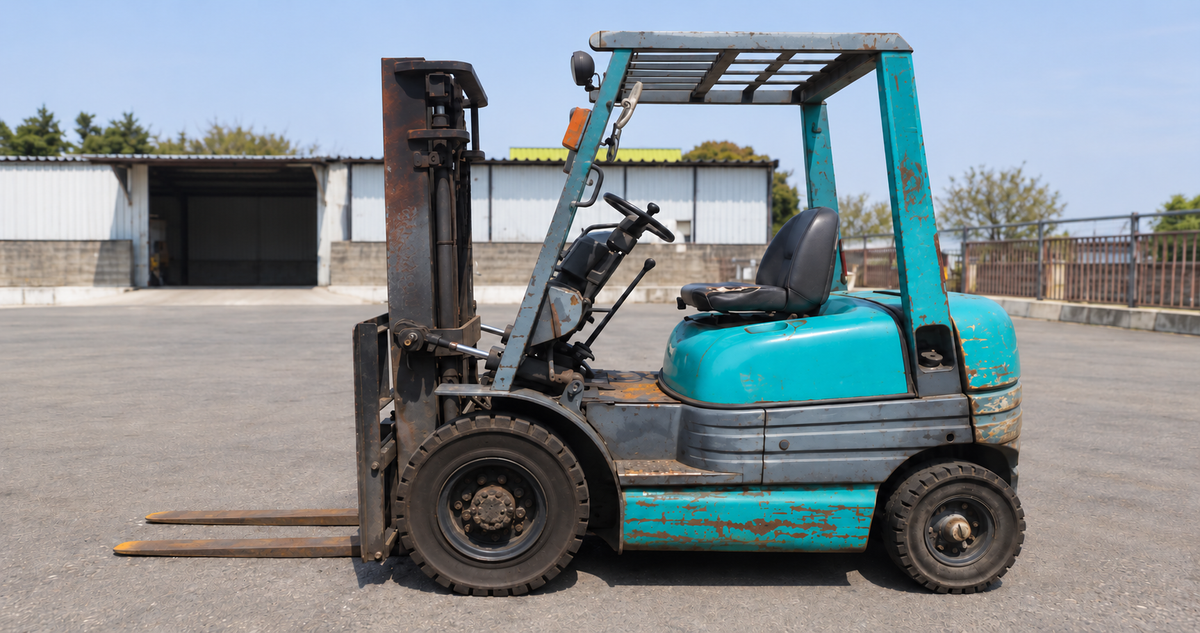

Toyota 6-Series Forklift Parts: Diagnose the Fault, Then Match the Part
Toyota 6-Series 6FD and 6FG forklifts can look almost identical while needing different replacement parts. This guide focuses on 6FD10–30 and 6FG10–30 trucks: the diesel and gasoline/LPG families, not every machine wearing a Toyota badge. Catalog applications include 1DZ and 2Z diesels and 4Y and 5K gasoline engines, but the engine fitted to your truck must be identified separately. Transmission type, production changes and mast equipment also matter. Start with the Toyota forklift parts collection, then narrow the choice using the complete model, serial number and original part number.
The useful question is not simply “What part fails on a 6FD25?” It is “What evidence distinguishes a leaking component from a problem elsewhere in the system?” The examples below help build that diagnosis. They are catalog starting points, not a promise that every listed part fits every 6-Series truck. Brake, steering and hydraulic repairs belong with a qualified technician; remove an unsafe truck from service.
Toyota 6-Series cooling: separate airflow problems from coolant leaks
A temperature gauge that climbs during a long shift does not automatically condemn the radiator. With the engine stopped and cooled, inspect for external leaks, debris blocking the core, damaged hoses, belt problems and missing or damaged airflow shrouding. A technician can then check pressure retention, coolant circulation and temperature readings. Never open a hot cooling system or keep operating an overheating truck to finish a load.
If testing confirms radiator damage, Radiator 16410-23611-71 is listed for selected 6FD/6FG20–25 applications. Compare mounting points, hose locations, core dimensions and any transmission-cooler connections before ordering. A nearby-looking radiator may bolt in yet connect incorrectly.
A hose that leaks at a clamp or has swollen, cracked rubber may require a smaller repair. Upper Radiator Hose 16511-23660-71 is specifically listed for 2Z-powered 6FD20–30 trucks. That engine restriction matters: do not extend it to a 1DZ truck just because the capacity matches. Compare the removed hose's bends and ends with the listing, and inspect the adjoining neck and clamp. Browse the wider cooling parts collection after identifying the configuration.
A sinking brake pedal: decide whether a kit is enough
A pedal that gradually sinks, needs pumping or feels different from yesterday calls for inspection before further use. Fluid loss, trapped air, wheel-cylinder faults and internal master-cylinder bypass can produce overlapping symptoms. Topping up the reservoir does not resolve the cause, and a firm pedal while parked is not proof that the complete braking system is sound.
The catalog lists Brake Master Cylinder 47210-23600-71 for 6FD/6FG10–30 and several related variants. It also lists Master Cylinder Repair Kit 04471-20100-71 for selected 6-Series applications. A kit is an option only after checking the exact cylinder and whether its bore and piston are serviceable. Corrosion or scoring can make a complete replacement more appropriate. Confirm the required fluid specification, repair procedure and final brake checks from the correct manual. Related components are in brake parts.
Steering play: find the moving joint before ordering
Wandering, a clunk during direction changes or uneven rear-tire wear can come from different places: linkage joints, kingpins, axle pivots, wheel bearings or the steering cylinder. The technician needs to observe where movement occurs with the truck safely supported according to its service procedure. Ordering a kingpin solely because the steering wheel feels loose can leave the original fault untouched.
King Pin 43231-23600-71 is listed for 3–6FD10–30 applications. Steering Bearing 43232-20540-71 is listed for 6FD20–30. Check the surrounding bearing surfaces and housing as well as the pin; a new pin cannot restore a damaged bore by itself. These diesel application listings should not be treated as proof of fitment for every 6FG axle.
Tilt creep and slow lift are different hydraulic complaints
If the mast angle changes with the control in neutral, investigate the tilt circuit. If the carriage lowers, investigate the lift circuit. External cylinder leakage, internal seal bypass and control-valve leakage require different repairs. Record which function moves, whether oil escapes externally and whether the behavior changes as the oil warms. Never stand under raised forks or search for a pressurized leak with a hand.
Tilt Cylinder Seal Kit 04655-20031-71 is listed for 6FD10–30. Confirm the actual cylinder number and inspect the rod and bore before committing to resealing; the truck's mast or cylinders may have been changed. This is a tilt kit, not a generic cure for forks drifting downward.
Slow or noisy hydraulic operation also warrants checks of oil level, condition, suction-side restrictions and air entry before a pump replacement. Hydraulic Suction Filter 67501-23001-71 is listed for 5–6FD/6FG10–30. Follow the prescribed servicing method and investigate contamination rather than simply installing a clean filter into dirty oil. More matching elements are in forklift filters.
Transmission hesitation: the production split matters
First establish whether the truck has a manual-clutch or torque-converter transmission. Delayed engagement on an automatic truck can involve fluid level, restrictions, control operation, pressure loss or internal wear. A slipping manual clutch is a different diagnosis. Record cold-versus-hot behavior and whether forward, reverse or both directions are affected; pressure and mechanical checks should precede internal parts orders.
Two catalog entries show why “Toyota 6-Series transmission plate” is insufficient: Separator Plate 32431-12050-71 carries a 6F application range of 9310–9505, while Separator Plate 32431-23630-71 carries 9505–9808. Both listings touch the changeover period. Confirm the serial number, transmission assembly and removed plate rather than choosing solely by the calendar. Neither listing means a complete clutch pack is supplied.
Vibration: do not confuse a worn mount with poor engine running
New vibration at idle can be transmitted by deteriorated mounts, but rough combustion or contact between an exhaust and the frame can feel similar. Engine Mount 12361-23600-71 is listed for 6FD/6FG10–30 and related variants. Check mounting position, rubber separation and surrounding hardware; do not assume one cross-reference identifies every mount on the engine.
How to order and maintain a 6-Series accurately
Photograph the truck data plate, complete model suffix and serial number. Add the engine identification, transmission type, mast identification where relevant, and the old component's number. Include clear pictures of connections and mounting faces. An imported truck's registration year is not a reliable substitute for its production identification.
Use the correct operator and service manuals for fluid specifications and intervals. A daily walk-around should catch fresh leaks, tire damage, damaged forks or chains and changes in brake or steering behavior. Toyota's forklift inspection and pre-operation checklist provides a useful inspection framework. Keep a fault log: “slow reverse when warm” is more useful to a technician than “gearbox bad.”
Frequently Asked Questions
Are 6FD and 6FG parts interchangeable?
Some catalog applications overlap, but fuel-system and engine-specific parts differ. Check each component's application and the installed assembly instead of assuming interchangeability across the truck.
Can I order a seal kit using only the forklift model?
Not reliably. Cylinder or mast changes can alter the required kit. Supply the cylinder identification and relevant measurements requested by the parts specialist.
Does a listed OEM number mean the part is Toyota-branded?
No. A reference number identifies an application or replacement cross-reference; it does not establish the manufacturer of the supplied item. Check the product details before ordering.
Can't find the right part? Send us a part request with the data plate, engine identification and photos of the old component.
