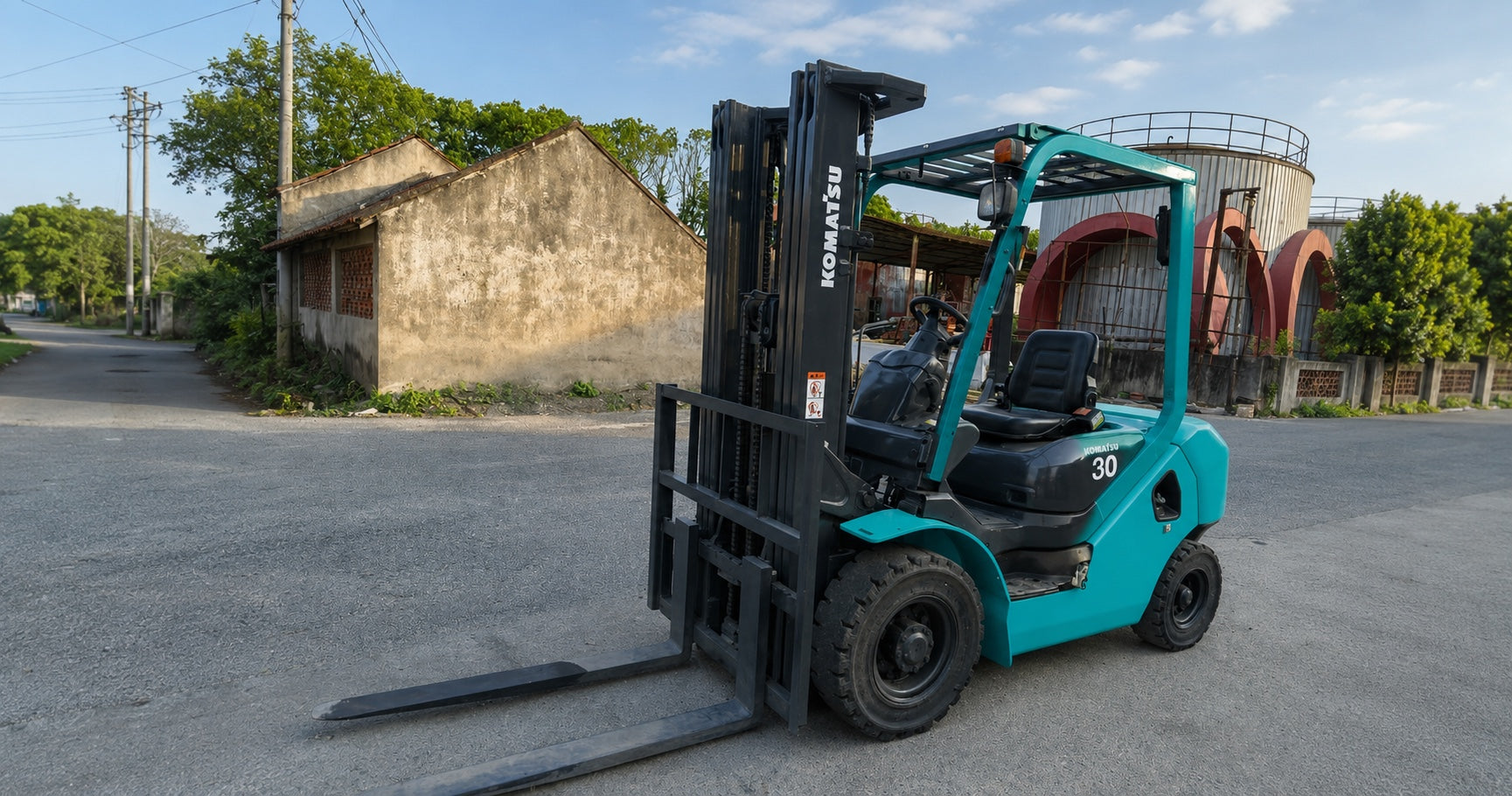

Komatsu FD20-30 Diesel Forklift Parts: What Fails, What Fixes It, and How to Order Right
If you run a used Komatsu, there is a good chance it is an FD20-30 — the 2 to 3 tonne diesel counterbalance built through the “-11” to “-17” dash series (the trucks many operators still call the AX50/BX50 family). Thousands came out of Japan and into North American fleets because they are simple, tough and cheap to keep running. The heart of the truck is a Yanmar diesel — usually a 4D94E, 4D94LE or 4D98E — and most parts you will ever need are shared across several dash numbers. That is also the trap: a part for a “-14” may not suit a “-17”, so the rule before ordering is always to read the data plate, note the serial, and match the OEM number on the old part. Below is the FD20-30 organised by system: the failures that actually put these trucks in the shop and the parts that put them back to work. Begin with the full Komatsu forklift parts collection.
The Yanmar engine: keep it cool and fed and it runs for years
The 4D94/4D98 Yanmars are famously durable, and most engine work is preventive rather than catastrophic. The classic warning sign is a slow coolant leak or a wet weep hole at the front of the block — that is the water pump bearing and seal on their way out, and the Water Pump YM129900-42050 (4D94E/4D94LE) is the direct replacement before it strands you. For higher-hour engines with low compression, hard starting or coolant in the oil, a fresh Cylinder Head YM129900-01200 (4D92E/4D94E/4D98E) and a valve job with new Intake & Exhaust Valves YM129900-11100 restore compression and a steady idle. These are jobs to plan, not panic over — the Yanmar gives plenty of warning. See more engine parts.
Cooling system: overheating is almost always the radiator or a hose
When an FD20-30 overheats, work from cheap to expensive. Squeeze the hoses cold — a soft, cracked or swollen Upper Radiator Hose 3EB-04-32420 (4D94E, FD20-30-12/-14) is a common and inexpensive failure that can dump coolant fast. If the core is clogged, bent or leaking at the tanks, the Radiator 3EA-04-43110 (4D94LE / FD20-30-16) is the fix. A truck that runs hot only under heavy load, with clean hoses and a full system, usually needs its core flushed or replaced rather than “just a thermostat.” Browse cooling parts.
Filters: the cheapest insurance you can buy
Nothing extends a forklift's life like clean fluids and air. On the FD20-30, three filters do the heavy lifting: the Hydraulic Suction Filter 34B-66-15180 (fits the whole FD20-30-11 to -17 range) protects the pump and valve from debris and should be changed on schedule, not just when a problem appears; the Air Cleaner Element 534A0-62011 keeps grit out of the Yanmar; and the Fuel Filter A-16405-T9005 guards the injection pump — the most expensive thing on the engine to repair. If the truck bogs under load or the hydraulics feel slow and hot, a neglected suction filter is a prime suspect. See all forklift filters.
Brakes and steering: the safety systems you cannot defer
A low or sinking brake pedal on an FD20-30 is usually a leaking master cylinder; rather than replace the whole unit, the Master Cylinder Repair Kit 30B-36-12910 (FD20-30-16) reseals it for a fraction of the cost. A parking brake that will not hold on a ramp is often just a stretched cable — the Parking Brake Cable 3EB-30-51110 (FD2030-16/-17) restores proper tension. On the steer axle, play at the wheel or a clunk on turns points to worn pivots: the King Pin Kit 3EB-24-05141 (FD20-30-16) rebuilds the knuckle, and heavy or vague power steering is usually cured by resealing the ram with the Steering Power Cylinder Repair Kit 3EB-64-51110. These are wear items — inspect them at every service. See brake parts and steering parts.
Mast, transmission and hydraulics: lift and drive
If the forks drift down under load, the lift-cylinder seals have hardened — the Lift Cylinder Seal Kit KBB670A-00028 (FD20-30/-14) reseals them and stops the creep. A transmission that slips, shifts harshly or is slow to engage a direction is usually down to worn clutch packs; the Transmission Friction Plate 3EA-15-11173 (spanning FD20-30-12 to -17) is the wear part inside. And when lifting is weak everywhere despite good seals and a clean filter, the gear pump is tired — the Hydraulic Pump 37B-1KB-5050 (FD30H-16 / 4D98E) restores full flow and lift speed. See mast parts, transmission parts and hydraulic parts.
Reading your Komatsu: model, dash number and engine
Komatsu's naming is logical once you know it. “FD” is diesel (FG is LPG/gas); the number is capacity (FD25 = 2.5 t); and the dash suffix (-11, -14, -16, -17) is the generation. That dash number is the detail that decides fitment for brakes, steering, cooling and electrical parts, so never order without it. Find it on the data plate on the cowl or near the operator's seat, along with the serial number. Then confirm the engine from the tag on the block — 4D94E, 4D94LE and 4D98E look similar but take different cooling and fuel parts. The fastest, most reliable way to order is by the OEM number cast or stamped on the old part (Komatsu numbers look like 3EB-xx-xxxxx; Yanmar engine parts like YM129900-xxxxx). If you only have the model, search that plus the dash number and check the application list.
A maintenance routine that keeps an FD20-30 cheap to own
These trucks reward simple care. Check oil, coolant and hydraulic level daily and glance under the truck for fresh drips. Change the fuel, air and hydraulic suction filters on schedule — they are cheap next to a pump or injection-pump repair. Grease the mast and steer-axle fittings regularly, keep the radiator core clean, and address a weeping seal or soft hose the week you notice it. Do that and a used FD20-30 will outlast trucks that cost twice as much.
Frequently Asked Questions
What do the dash numbers (-11, -14, -16, -17) actually mean?
They mark the FD20-30's generation. Many engine parts carry across, but chassis, brake, steering and electrical parts are dash-specific, so always quote the full model (e.g. FD25-16).
Which Yanmar engine is in mine?
Most FD20-30s use a 4D94E, 4D94LE or 4D98E. Read the tag on the block — your water pump, hoses, head and fuel parts are chosen by engine, not just capacity.
Do FD (diesel) and FG (LPG) parts interchange?
Chassis, brake, steering and mast parts are usually shared; engine, cooling and fuel-system parts are not. Confirm your fuel type before ordering.
Is it worth rebuilding versus replacing on these?
Usually yes — seal kits and repair kits (master cylinder, power cylinder, cylinder seals) cost far less than complete assemblies and are straightforward jobs on the FD20-30.
