Toyota 5-Series Forklift Parts: Diagnose the Problem and Match the Right Assembly

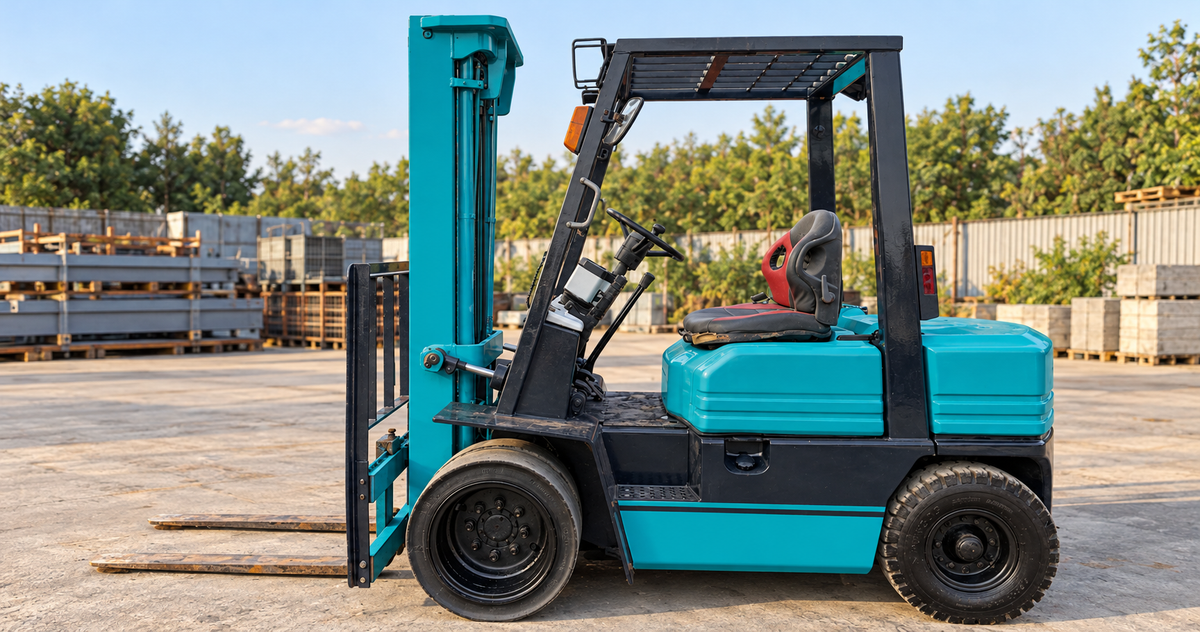

Toyota 5-Series forklifts remain useful in warehouses, workshops and outdoor yards, but age and years of repairs make identification especially important. This guide focuses on the 5FD diesel and 5FG gasoline/LPG families, particularly trucks in the 10–30 catalog ranges. A 5FD25, 5FG25 and a 5FDC25 may look related without having identical brakes, mast equipment or transmission parts. Catalog listings include 1Z diesel and 4Y gasoline applications among other engines; check the engine actually installed rather than assuming one from the truck's model. Start with the Toyota forklift parts collection, then use the full model, serial number and old component number to narrow the choice. The examples below are catalog starting points, not a guarantee that every part fits every 5-Series truck.
Toyota 5-Series cooling: find the heat source before replacing the radiator
A temperature gauge that rises under load can reflect restricted airflow, low coolant, a damaged hose, belt trouble or poor coolant circulation. With the engine stopped and cool, look for a wet core, damaged fins, blocked passages between the radiator and counterweight, and hoses that have hardened or swollen. A technician can then check the cooling system and circulation using the correct service procedure. Never open a hot radiator or continue operating an overheating truck simply to finish a job.
The catalog lists Radiator 16410-23010-71 for selected 5FD20–25 and 5FG applications. Compare core dimensions, mounting points, hose locations and any transmission-cooler connections with the original. A radiator that looks similar in a photo may have a different outlet or mounting bracket. For a 1Z-powered 5FD20–30, Lower Radiator Hose 16512-23060-71 is another catalog example. Its engine restriction matters; check the hose shape and connections before ordering. Browse the cooling parts collection once the configuration is known.
Brakes: a wet wheel end and a low pedal require different checks
A brake pedal that sinks, changes feel or needs pumping should be treated as a fault, not a normal feature of an older forklift. Leaking pipes, worn wheel cylinders, a master-cylinder problem and air in the system can produce similar complaints. Remove the truck from service if braking is suspect. A technician should inspect the entire circuit and the friction material; repeatedly topping up the reservoir can conceal fluid loss without restoring safe braking.
Wheel Cylinder 47420-22000-71 is listed for the left side of selected 3–5FD/FG20–25 applications, while Wheel Cylinder 47410-22000-71 is listed for the right side. Confirm the brake assembly, side, bore, mounting and line connection: capacity and series alone do not establish fit. If leaked fluid has contaminated the shoes, the repair must address the friction material too. Follow the applicable manual for adjustment, bleeding and final checks. Other components are in the brake parts collection.
Loose steering: trace movement through the rear axle
Steering play may come from a worn kingpin, bearing, linkage end, axle pivot or cylinder mounting. Have a qualified technician locate the actual movement with the truck secured according to its service instructions. A clunk at a linkage joint and movement between a steering knuckle and axle call for different parts; changing seals will not cure a worn mechanical joint.
King Pin Kit 04431-20052-71 is listed for selected 3–5FD/FG10–30 trucks. Compare the pin, bearings and included pieces with the fitted axle and inspect the housing and bearing surfaces before choosing a kit. A replacement pin cannot restore an oval or damaged bore. If steering becomes heavy rather than loose, hydraulic supply, a binding joint or tire condition may also need investigation. The steering collection is useful after the source of movement has been identified.
Mast binding, fork drift and slow lift are separate symptoms
A carriage that binds or moves unevenly needs inspection of the mast rails, rollers, chain condition and adjustment. Mast Roller 61821-20540-71 is listed for 3–5FD20–30 applications. Measure the old roller and identify its location and mast before ordering; different positions can use different rollers. Worn rails or poor chain adjustment may remain a problem even after a roller is replaced.
If the carriage lowers in neutral, distinguish lift-cylinder leakage, internal bypass and control-valve leakage through proper testing. Free-Lift Cylinder Seal Kit 04652-20031-71 is listed for selected 5FD10–25 trucks. It is a free-lift kit, not a universal tilt-cylinder kit. Confirm the mast, cylinder and rod dimensions, and inspect the rod and bore before rebuilding. Never work under unsupported forks or use a hand to search for a pressurized hydraulic leak.
Slow lifting can also involve low or contaminated oil, suction restrictions, air entry, a valve fault or pump wear. The listing for Hydraulic Pump 67110-23022-71 includes selected 1Z/1DZ 5FD20–30 and 4Y manual-transmission 5FG20–30 applications. Confirm drive, mounting, ports and engine; pressure and flow testing should come before condemning the pump.
Clutch trouble: identify the transmission before ordering
A manual-clutch truck that is difficult to shift may have an incomplete clutch release, an adjustment issue, hydraulic leakage or internal clutch wear. A torque-converter truck with delayed engagement requires a different diagnosis. Record whether the issue occurs in both directions and whether the fluid or pedal feel changes as the truck warms. Clutch Release Cylinder 31420-13000-71 is listed for selected 5–7FD/FG10–30 trucks. Verify that the machine has the corresponding clutch system and compare the connection and mount. A cylinder is not a substitute for inspecting the master cylinder, linkage or clutch disc.
Identify the truck and build a useful maintenance record
Photograph the data plate and record the complete prefix, model suffix and serial number. Add the engine identification, transmission type and mast or cylinder markings for the system being repaired. Older trucks may have replacement masts, engines or brake assemblies, so photograph the fitted component and any stamped number as well. A registration year or a faded capacity decal cannot reliably identify a production change. Ask a parts specialist to check the information before ordering when the listing includes a date, engine, side or mast restriction.
Before each shift, inspect for fresh leaks, tire or fork damage, and changes in steering, brakes, lift or warning devices. Keep service fluids and filters to the specifications and intervals in the applicable manual, and record defects as soon as they appear. Toyota's pre-operation inspection guidance is a useful starting point. Do not repair or operate a truck with an unresolved safety defect.
Frequently Asked Questions
Are 5FD and 5FG parts interchangeable?
Some chassis and brake listings cover both, while engine-specific and configuration-specific parts differ. Check each listing and the installed assembly rather than assuming interchangeability across the truck.
Can a 5-Series seal kit be ordered by capacity alone?
No. Mast and cylinder configurations can change. Supply the cylinder number, mast identification and requested measurements, especially if the mast has been replaced.
Does an OEM reference number mean the replacement is Toyota branded?
No. A reference number can identify a replacement application or cross-reference. Check the product details for the actual item supplied.
