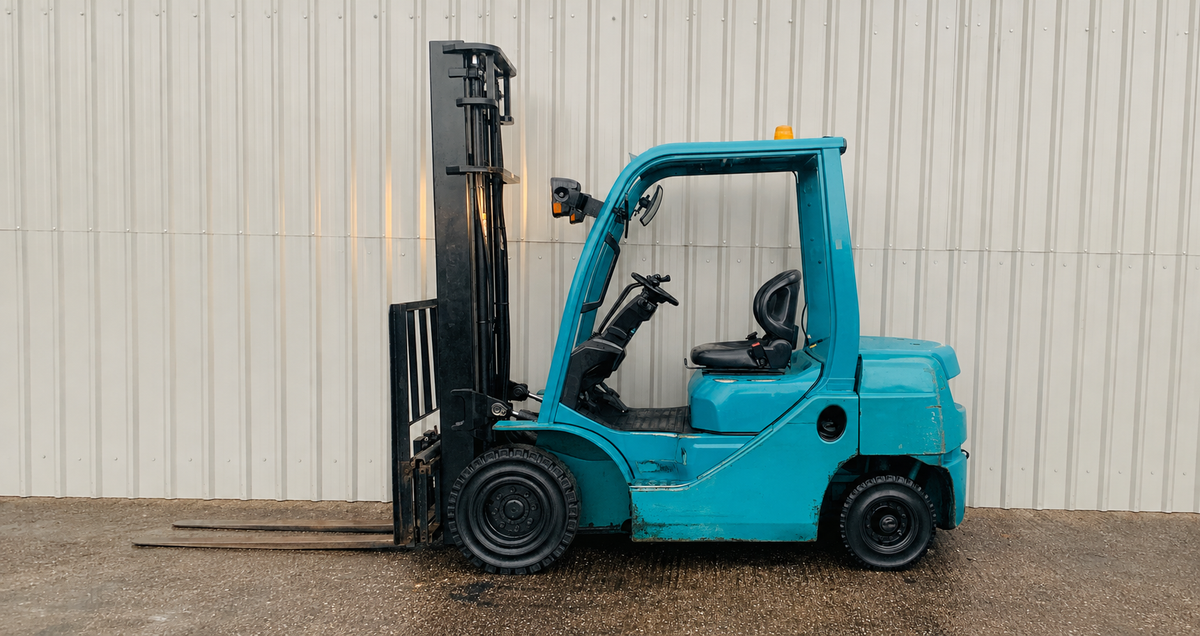

Toyota 8FD forklifts are built for long service, but “8FD” alone is not enough to order a correct replacement part. The family includes multiple capacities, regional suffixes, engine packages, mast configurations, and production breaks. A cooling part for an 8FD20 may look similar to one for an 8FD60 and still have different ports, mounting points, or dimensions. The safest repair starts with the truck data plate, the engine model, and the number on the removed component.
This guide connects common 8FD symptoms to the systems worth inspecting first. It also links to verified 4LIFT PARTS listings for representative service parts. Always confirm the full model, serial number, engine, and old part number before ordering.
How to identify your Toyota 8FD forklift
Photograph the data plate before disassembly. Record the complete model exactly as shown—examples may include 8FD, 8FDU, 8FDN, or capacity-specific suffixes—plus the serial number. Then photograph the engine tag, mast data plate, and the stamped or printed number on the old part. Toyota used several diesel engines across the broader 8FD range; official Toyota specifications, for example, show the 1KD in several mid- and large-capacity 8FD models. That does not mean every 8FD uses the same engine or the same cooling and fuel components.
- Truck: full model, serial number, rated capacity, and market suffix.
- Engine: engine family and serial number from its own tag.
- Mast: mast type, lowered height, lift height, and any attachment.
- Old part: every readable OEM number, connector, port, spline, and mounting dimension.
Start with the full Toyota forklift parts collection when the old number is missing. A serial number is especially important when two parts share a description but belong to different production ranges.
Overheating, coolant loss, or noisy water-pump bearings
An 8FD that runs hot should not be treated as “just a radiator problem.” Check coolant level only when the engine is cold, inspect the fan and belt, look for collapsed hoses, clean debris from the core, and verify that coolant is actually circulating. Coolant traces around the pump weep hole or pulley play point toward the pump, while a cold lower hose on a hot engine can indicate a circulation or thermostat issue.
For 1KD-equipped 8FD35N–80N applications, review the 16100-76066-71 water pump. Smaller 8FD/1DZ/2Z applications may use the 16420-26610-71 radiator. These are not universal 8FD parts: compare engine, capacity, ports, core dimensions, and mounting points. Browse more options in cooling parts.
Hard starting, uneven running, or fuel starvation
Slow cranking and fuel starvation can feel similar from the operator’s seat. Begin with battery voltage, cables, grounds, and starter speed. If cranking speed is normal, check for air entering the fuel supply, water or contamination in the filter, restricted lines, and a shutoff circuit that is not staying energized. Do not replace injectors before confirming clean fuel delivery and a healthy electrical supply.
The 23313-23060-71 fuel filter assembly, listed for multiple 7/8FD applications, is a useful reference when the filter head, sensor, or housing is damaged. Verify connector style and all port positions. For routine engine service, use the engine parts and filters collections, but match the filter to the engine rather than to the “8FD” badge alone.
Slow lift, hydraulic noise, or drifting functions
Hydraulic complaints need a simple sequence: confirm oil level and condition, inspect for suction leaks, check the return filter, measure system pressure, and isolate whether the fault affects every function or only one circuit. Foamy oil suggests air entry. A hot, noisy pump with slow lift can indicate restriction, aeration, wear, or an incorrect oil grade. A mast that drifts with the control centered may instead point to a cylinder seal or control-valve leak.
Useful references include the 67502-26600-71 hydraulic return filter and the 67120-26650-71 hydraulic pump. The pump listing covers several numbers and applications, so compare the flange, shaft, rotation, ports, and original casting. See all hydraulic parts.
Mast chatter, roller play, or tilt-cylinder leakage
Binding, side play, and uneven lifting should be checked with the mast unloaded and safely supported. Inspect rollers, channels, chains, anchors, carriage bearings, and cylinder rod surfaces. A new seal kit will not cure a scored rod, bent tube, loose gland, or contaminated hydraulic circuit. Likewise, replacing one worn roller without checking its mating channel can leave the mast noisy and unstable.
The 61236-10890-71 mast roller appears across several Toyota series and must be matched by dimensions and mast application. For tilt leakage on 8FD10–30 trucks, compare the removed seals with the 04655-20121-71 tilt-cylinder seal kit. Browse mast parts for additional rollers, chains, and cylinder components.
Poor braking or pulling to one side
A low pedal, uneven braking, overheating drum, or truck that pulls under braking requires inspection of both sides. Look for fluid leaks, contaminated linings, seized adjusters, damaged return springs, worn drums, and restricted lines. Brake parts should be replaced as an axle set when wear is uneven, and the complete system must be adjusted and tested before the truck returns to service.
For smaller 8FD10–18 applications, the 47030-16602-71 right-hand wheel brake assembly is one verified example. Confirm left/right orientation and production range. More service components are in brake parts.
Transmission hesitation and direction-control faults
If the truck hesitates before moving, first separate an electrical command problem from a hydraulic transmission problem. Check oil level at the specified temperature, oil condition, filters or strainers, inching adjustment, wiring, connectors, and commanded voltage. Burnt oil or clutch debris requires deeper diagnosis; repeatedly cycling the direction lever can turn a small control fault into clutch damage.
The 32610-23330-71 transmission solenoid valve is listed across numerous 7/8FD applications. A direction lever that fails intermittently may instead lead to the 57460-13351-71 forward/reverse switch. Match connector shape, pin count, mounting, and full model. Browse transmission parts and electrical parts.
Preventive maintenance priorities
- Check engine oil, coolant, hydraulic oil, and visible leaks at the start of each shift.
- Keep the radiator and oil-cooler fins clean; compressed debris between cores is a common hidden restriction.
- Service fuel, air, hydraulic, and transmission filters by hours and operating conditions, not only by calendar date.
- Inspect mast chains, rollers, cylinder rods, forks, heel wear, and carriage play regularly.
- Test brakes, parking brake, steering play, lights, alarms, and direction controls before operation.
- Record installed part numbers and serial breaks so the next repair is faster.
Frequently asked questions
Are all Toyota 8FD parts interchangeable?
No. Capacity, engine, market suffix, serial range, mast, and production date can all change the correct part.
Can I order with only “Toyota 8FD”?
Usually not safely. Send the complete data plate plus photos and measurements of the removed part.
Why does my 8FD overheat after a radiator replacement?
Possible causes include trapped air, incorrect core or hose routing, a weak pump, belt or fan problems, thermostat faults, internal engine issues, or debris blocking airflow.
What should I send if the part number is unreadable?
Send the truck and engine plates, several clear part photos, connector or port details, and key measurements. Our team can cross-check the application.
Need help confirming the correct part?
Send us the full Toyota model and serial number, engine tag, old part number, and clear photos. If the catalog match is still uncertain, use our Can't Find the Right Part? request form. We will help narrow the fitment before you order.
